e10 Key Cabinet

Mini Key Management Range

Mini Range Features

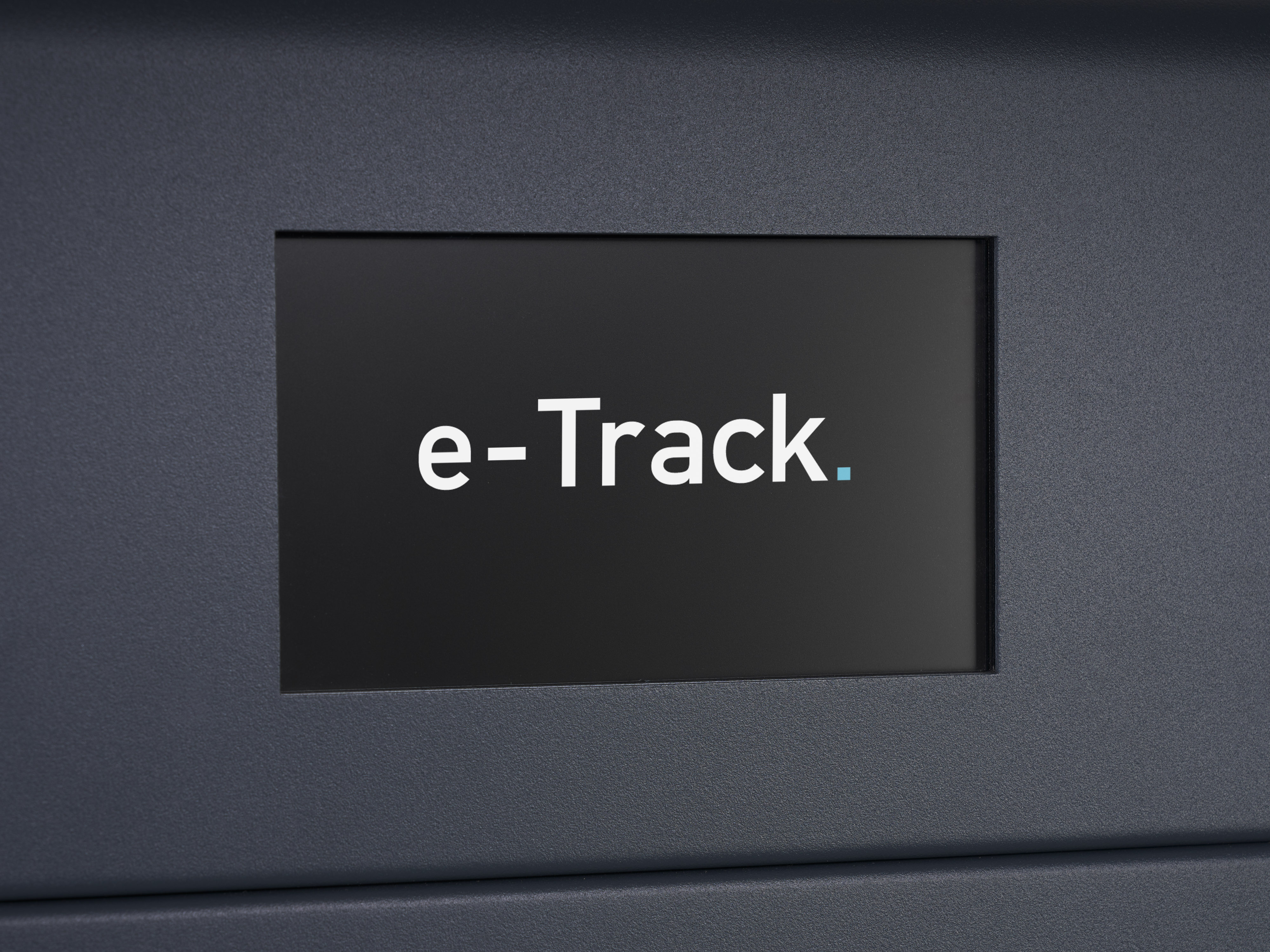

5" User Interface

Each Mini Cabinet features a 5-inch screen with a keypad, providing a user friendly interface for key management.

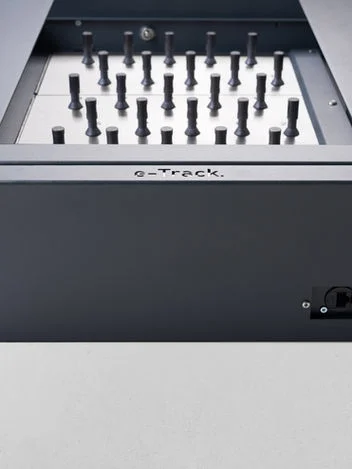

Wall-Mounted Design

The Mini Cabinets are designed to be wall-mounted, optimising space usage in environments where space is limited.

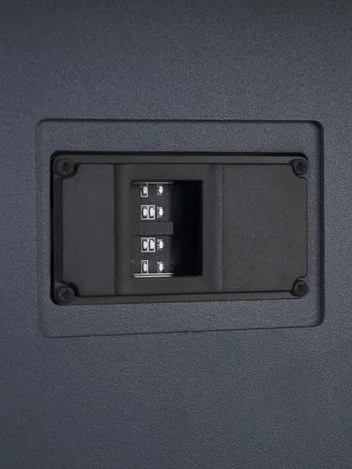

Multi-Access Options

All Mini Cabinets support multiple access methods including PIN codes, RFID Cards and optional biometric fingerprint readers for enhanced security.

Battery Backup

In the case of a power outage, our cabinets are fitted with a 5.4 Ah Lead Acid battery capable of lasting 8 hours.

System Details

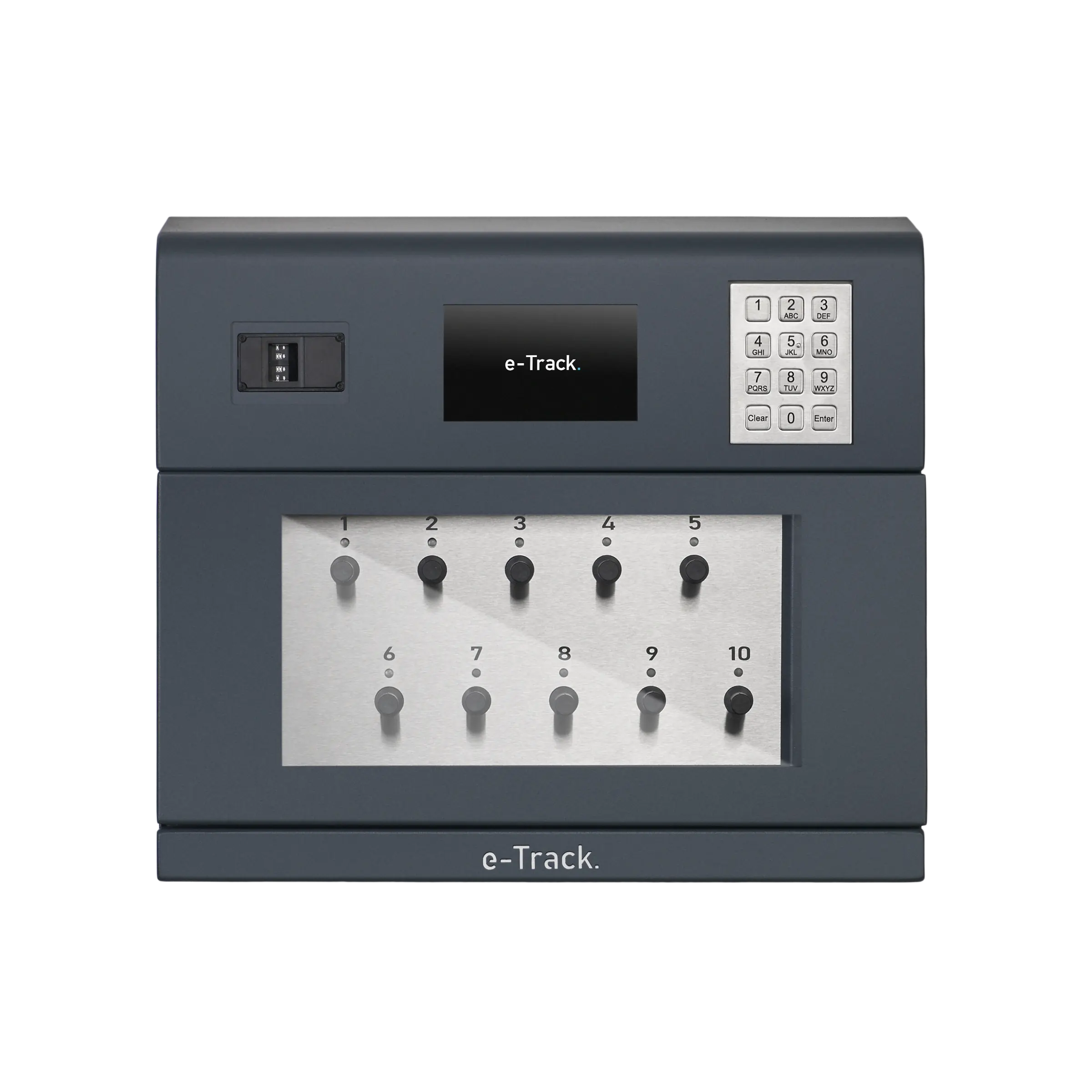

Introducing the e-Track Mini Key Cabinet, a tailored electronic key tracking system designed for smaller teams seeking enhanced key compliance and accountability. The sleek design is particularly well-suited for clinical or limited wall space settings, providing a practical solution without compromising functionality.

Download Spec Sheet
Height (mm) 410
Width (mm) 430
Depth (mm) 125
Weight (kg) 19
FOB Slots 10
eFOBs RFID
Power Consumption 2.5 Amps
Battery Backup 8 Hours
Interface Screen 5 Inches
Comms Ethernet, 4G
